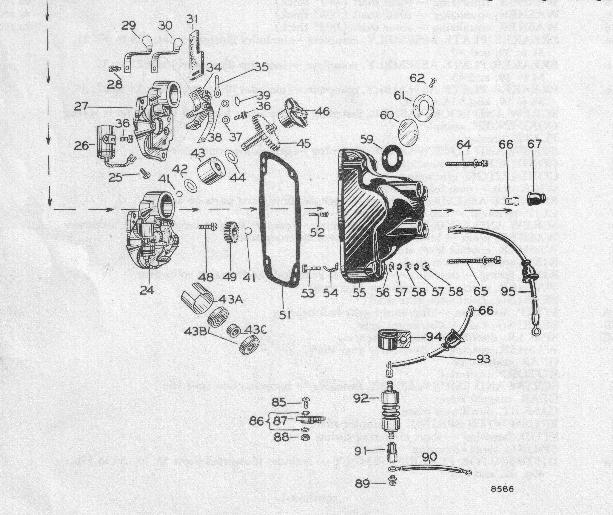

MRD 3, 4, and 6 Cylinder Unshielded Nomenclature

Service Parts List
>
Illustration #Part NumberDescription Of Part Quanity Used
1NT 6-12NUT, hexagon - magnet rotor shaft (without coupling) 1
2WA 5-12WASHER, lock - magnet rotor shaft (without coupling) 1
3aPK 5238SEAL, dust - base mounted magneto 1
3bPK 5237SEAL, oil - flange mounted magneto 1
4HG 52528HOUSING, magneto -- base mounted - includes illustrated parts 5 and 6 1
4AHG 52529HOUSING, magneto - vertical flange mounted - includes illustrated parts 5 and 6 1
4BHG 52530HOUSING, magneto - horizontal flange mounted - includes illustrated parts 5 and 6 1
4CGA 52155GASKET, vertical flange mounted magneto 1
5PN 1056PIN, locating - distributor plate 2
6PN 1001PIN, locating - breaker plate 1
x7aSC 1519SCREW, fastening - ventilator cover 2 per cover
7bsee part variationsSCREW, fastening - ventilator plate 2 per plate
8aCV 52324COVER, ventilator 2
8bsee part variationsCOVER, ventilator 1
8csee part variationsPLATE, covering - ventilator 2
8dsee part variationsPLATE, covering - ventilator (assemble to right hand side of
housing as viewed from drive end		 1
9aGA 52216GASKET, ventilator 2
9bsee part variationsSCREEN, ventilator 2
10SC 1334SCREW, set - coil 2
11CL 52137COIL ASSEMBLY, complete - includes illustrated parts 12 and 14 1
12SP 52290SPRING, coil contact 1 1
14CB 52199CABLE, coil 1
16IS 222WASHER, insulation - magnet rotor ball bearing 2
17IS 52266STRIP, insulation - magnet rotor ball bearing 2
18BB 60226BEARING, ball - magnet rotor 2
19WA 52231WASHER, grease retaining -- magnet rotor ball bearing 2
20WA 1513WASHER, spacing - magnet rotor ball bearing 1
21KY 11-4KEY, Woodruff - magnet rotor
1
22a
see part variationsROTOR, magnet - clockwise rotation
1
22b
see part variationsROTOR, magnet - counter-clockwise rotation
1
23a
WA 61WASHER, equalizing - rotor shaft (.C112" thick)
as required
23b
WA 106WASHER, equalizing - rotor shaft (.007'° thick)
as required
23c
WA 107WASHER, equalizing - rotor shaft (.004" thick)
as required
23d
WA 1009WASHER, equalizing - rotor shaft- (.002" thick)
as required
24a
see part variationsBREAKER PLATE ASSEMBLY, complete - includes illustrated parts 25 to 37, 31, 34 to 39,
and 3
1
24b
see part variationsBREAKER PLATE ASSEMBLY, complete - includes illustrated parts 25 to 31, 34 to 39, and
43
1
24c
see part variationsBREAKER PLATE ASSEMBLY, complete - includes illustrated parts 25 to 27, 31, 34 to 39,
and 43A to 43C
1
25
SC 1132SCREW AND LOCKWASHER, fastening - condenser lead and breaker lever spring
1
26
CW 5279CONDENSER, complete
1
27
see part variations PLATE, breaker
-		1
28
see part variations SCREW AND LOCKWASHER, fastening - grounding conductor
2
29
see part variations CONDUCTOR, grounding 1
 1
30
see part variations CONDUCTOR, grounding
1
x31
WK 5263 WICK, felt - cam lubricating
1
34
BK 52203 BRACKET ASSEMBLY, contact - includes illustrated parts 38 and 39
1
35
EC 1099 CLIP, terminal --- coil cable retaining
1
36
SC 1143 SCREW AND LOCKWASHER, fastening - contact bracket assembly and condenser
3
37
WA 72613 WASHER, plain - lower contact bracket fastening screw
1
38
WA 1333 WASHER, contact lever stud
1
39
SP 1074 RING, spring - lever stud
1
41
SP 52279 RING, spring - fastening - distributor gear shaft and magnet rotor gear
2
42
WA 1518 WASHER, spacing - distributor gear shaft
1
43
BG 52154 BEARING, distributor gear shaft
1
43A
see part variations STRIP, insulation - distributor gear ball bearing
one of either
43B
see part variations BEARING, ball - distributor gear
2
43C
see part variations SPACER, distributor gear ball bearing 1
44
WA 1518 WASHER, spacing - distributor gear shaft 1 45
GEAR, distributor
 1
45
see part variations GEAR, distributor
 1
46
see part variations ROTOR, distributor
 1
48
SC 1230 SCREW AND LOCKWASHER, fastening -- breaker plate assembly
3
49
see part variations GEAR, magnet rotor
1
51
GA 5261 GASKET, distributor plate
1
52
BR 563 BRUSH WITH SPRING, distributor plate
1
53
SC 1203 STUD, fastening - short circuiting spring
1
54
SP 52169 SPRING, short circuiting
1
55a
see part variations DISTRIBUTOR PLATE ASSEMBLY - includes illustrated parts 53, 54, 56 to 59a, 60a, 61,
and 62a
 1
55b
see part variations DISTRIBUTOR PLATE ASSEMBLY - includes illustrated parts 8a, 53, 54, 56, 57, 58, 59b,
60a, 62a, and 62c
 1
55c
see part variations DISTRIBUTOR PLATE ASSEMBLY - includes illustrated parts 53, 54, 56 to 59a, 60a, 61,
62a, and 85 to 88
 1
55d
see part variationsDISTRIBUTOR PLATE ASSEMBLY - includes illustrated parts 53, 54, 56 to 58, 59b, 60a,
60b, 61, and 62b
1
55e
see part variations DISTRIBUTOR PLATE ASSEMBLY - includes illustrated parts 59a, 60b, and 62a
1
56
WA 1-6CA WASHER, plain - short circuiting spring fastening stud
1
57
WA 108 WASHER, lock - short circuiting spring fastening stud
2
58
NT 3-4CA NUT, fastening - short circuiting spring fastening stud 2
 2
59a
GA 52216 GASKET, observation window
 1
59b
see part variations GASKET, observation window and blocking plate 2

60a
WN 526 WINDOW, observation
1
60bsee part variations PLATE, blocking - observation hole (assemble to left hand side as
viewed from drive 1 end)		 1
61
see part variations WASHER, observation window
1
62a
SC 1574 SCREW, fastening - observation window or blocking plate
2
62b
see part variations SCREW, fastening - observation window, and/or blocking plate
4
62c
see part variations SCREW, fastening - ventilator cover
2
64
SC 1524 SCREW, WASHER AND LOCKWASHER, fastening - distributor plate - upper
2
65a
SC 1523 SCREW, WASHER AND LOCKWASHER, fastening - distributor plate - lower
as required
65b
see part variations SCREW AND LOCKWASHER, fastening - distributor plate and grounding cable
1
66
FP 81953 CLIP, terminal - cable
1 per cylinder
67
IS 82927 NIPPLE, insulation - distributor plate
1 per cylinder
68
see part variations STUD, grounding
1
71
see part variations TERMINAL, fastening - cable assembly 1
 1
72
see part variations CABLE ASSEMBLY, grounding
1
74
see part variations WASHER, insulation - grounding stud
1
75
see part variations WASHER, insulation - grounding stud
1
76
see part variations BUSHING, insulation - grounding stud
1
77
see part variations WASHER, insulation - grounding stud
1
78
see part variations WASHER, plain - grounding stud
1
79see part variationsWASHER, lock - grounding stud 1
80see part variationsNUT, fastening - grounding stud 2
81see part variationsWASHER, shakeproof - grounding stud 2
82see part variationsSPRING, grounding 1 1
83see part variationsTUBING, insulation - grounding spring 1
84see part variationsSCREW, blocking 1
85see part variationsSCREW, fastening - ventilator cover 2 2
86see part variationsWASHER, lock - ventilator cover fastening screw 4 4
87see part variationsCOVER, ventilator - distributor plate 1
88see part variationsNUT, securing - fastening screw 2
89see part variationsSCREW AND LOCKWASHER, fastening - grounding cable terminal 1
90see part variationsCABLE ASSEMBLY, grounding 1
91see part variationsTERMINAL - resistor and grounding terminal 1
92see part variationsRESISTOR connects #2 distributor plate tower to resistor 1
93see part variationsCABLE ASSEMBLY, high-tension - includes one of illustrated part 66 1
94see part variationsCLAMP, resistor 1
95see part variationsCABLE, high-tension - includes one of illustrated parts 66 and 67 1 per cylinder
**1
see part variations COUPLER YOKE, magneto drive shaft
 1
**2see part variationsADJUSTABLE COUPLING - for parts and illustration, see Manual Section 1 120-02-100
**3see part variationsDISC, driving 1
**4-IMPULSE COUPLING ASSEMBLY - for parts and illustration, see Coupling 1 Section ----

MRD 4 & 6 CYLINDER PARTS LIST FOR BASIC TYPE UNSHIELDED MAGNETOS
1, 2, 101, 102 --- 45 mm Base Mounting
31, 32, 301, 302 --- Verticle Flange Mounting
41, 42, 401, 402 --- Horizontal Flange Mounting
"E" Gap: 1-2mm Point Opening: .014-.018"
Magneto type designations ending in odd numbers denote CCLW rotation as viewed from the drive end
Magnetos having type designations ending in even numbers denote CLW rotation as viewed from the drive end
Basic magnetos having type designations in the 100 Series (Examples: MRD4A102) are supplied with ICB2A1 or 2 impluse couplings, depending on rotation.
Basic magnetos having type designations in the 300 and 400 Series (Examples: MRD4A301 & MRD4A401) are supplied with ICA2A1 or 2 impluse couplings, depending on rotation.
Basic magnetos having type designations ending in one or two digit numbers (Examples: MRD4A2 & MRD6A32) are not supplied with impluse couplings.
The part, or parts affected by this reissue are indicated by an "x" in front of the illustration number.


Basic Magneto Part Variations

Illustration
#
MRD 4/2
180 A
MRD 4/2
360-A
 MRD 4A
MRD 6A
 MRD 6/2
360'A
22a
RT 52298
RT 52290
RT 52298
RT 52298
RT 52290
22b
RT 52299
RT 52289
RT 52299
RT 52299
RT 52289
24a
----------
BK 52248
BK 52248
BK 52248
 BK 52248
24b
 BK 52307
----------
 ----------
----------
----------
27
BK 52277
BK 52249
BK 52249
BK 52249
BK 52249
28
SC 1151
----------
 ----------
----------
-----------
29
EC 52290
----------
 ----------
----------
-----------
30
EC 52291
----------
 ----------
----------
----------
45
GE 52238
GE 52238
GE 52238
GE 52243
GE 52243
46
RT 52288
 RT 52288
RT 52288
RT 52304
RG 52304
49
GE 52239
GE 52239
GE 52239
GE 52244
GE 52244
55a
 DP 52607(1)
 DP
52607(2)
 DP 52607
DP 52610
DP
52610(3)
60 B
 PL 52441
----------
 ----------
----------
----------
61
---------
WA 52277
 WA 52277
  WA 52277
WA 52277

ALL OTHER ILLUSTRATED PARTS USED ON VARIATIONS OF THESE MAGNETOS.

1 Ground the two upper towers. This plate replaces DP 52617.
2 Fill unused towers with sealing wax. This plate replaces DP 52613.
3 Fill unused towers with sealing wax. This plate replaces DP 5262G.

SERVICE PARTS LIST For 4 Cylinder Non-Basic Fractional Unshielded Magnetos

MAGNETO CODE

Part variations within the following group of magnetos are indicated by a code number, or a combination of
code numbers, in the "Magneto Code" column.
EXAMPLE: Illustration number 8b, part number CV 52324 - ventilator cover, is applicable to magneto 5 only, namely
MRD 4/2 360 ° A312

Code #
 MRD Magneto Variation
 MRD Basic
Magneto
 Installation
Number
 Customer
 Used On Engine
Model
1
4/1A310
4A302
 H 4/1310
Ajax Iron Work
 CM
2
 4/2 180° A310
4/2 360° A302
H 2310Y
 Lycoming Spencer Div.
Air cooled industrial engines
3
4/2 360 ° A302
4/2 360° A302
H 2302Z
LeRoi Co.
 V, X
4
4/2 360° A310
4/2 360° A302
H 2310ZV
Schramm Inc.
60 Gas Pneumapower
5
4/2 360° A312 (see #1)
 4/2 360° A302
H 2312Z
 Wisconsin Motors Corp.
TF (3Y4 x 3Y4)

PART VARIATIONS

The part, or parts, affected by this reissue is indicated by an (x)  at the left of the illustration number.

Illustration
#
Part #
 Magneto
Code
 Illustration
#
Part #
 Magneto
Code
4A
HG 52653
5
 76
IS 52479
5
x7a
SC 1519
5
 77
WA 1278
5
7b
SC 1381
5 78
WA 72613
5
8b
CV 52324 5
5 79
WA 6-4
5
8d
PL 52441
5 80
NT 3-4CA
5
22a
RT 52294
2
 81
WA 21
4
22b
RT 52440
5
 82
EC 5268
5
x24c
BK 52383
1
 84
SC 1380
5
27
BK 52380
1
 85
SC 37-SCA
1
43A
 IS 52212
1
 86
WA 21-3CA
1
43A
IS 52279
1
 87
CV 52673
1
43B
BB 5211
1
 88
 NT 3-3CA
1
43C
SR 5259
1
 89
 SC 1734
1
55c
DP 52690
1
 90
CB 52238
1
55b
DP 52619
5
 91
EC 582
1
59b
GA 52216
5
 92
RE 589
1
62c
SC 1519
5
 93
CB 52271
1
65a
SC 1523
1
 94
HP 1003
1
65b
SC 1530
1
 **4
ICA 2A2 - 40'
1
68
SD 52194
5
 **4
ICA 2A88 - 30 °
2
72
CB 52218
5
 **4
ICA 2A2 - 20'
3
74
WA 1543
5
 **4
ICA 2A34 - 35'
4
75a
IS 52478
5
 **4
ICA 2A84 - 30'
5

FOR ALL OTHER REQUIRED PARTS, REFER TO THE APPLICABLE BASIC MAGNETO.

1. Fill unused towers of distributor plate with sealing wax. This plate replaces DP 52688.

SERVICE PARTS LIST
For 3 & 4 Cylinder Non-Basic Unshielded Magnetos
MAGNETO CODE

Part Variations within the folling group of magnetos are indicated by a code number, or a combination of code numbers, in the "Magneto Code" column.

EXAMPLE: Illustration numer 44, part number WA 1262-- spacing washer, is applicable to magnetos 2 and 7 only, namely MRD 4A10 and MRD 4A18.

Code #MRD Magneto VariationMRD Basic Magneto Installation #CustomerUsed On Engine Model
13A412*14A402-Ingersoll-Rand Co.3-R-30 air compressor
24A104A2H 4101US Dept. of CommereceKohler engines
34A11*24A1H 4011--
44A12*24A2H 4012--
54A144A2H 4014Roth Mfg.Steam generators
64A154A1H 4015Roth Mfg.Steam Generators
74A184A2h 4018Transicoid Cord.ZXB (Hercules)
84A37*24A31H4037--
94A38*2-4A32H 4038Gallivan Eng. Co.-
104A101*34A101H 411Hercules Motors Corp.00A, 00B, 00C, 00PU
114A101*44A101H 411Hercules Motors Corp.0X, 0XC, K
124A102*54A102H 412Waukesha Motor Corp.FC, XAH
134A112*6-74A102-Chicago Pneumatic Too, Hercules Motor Corp., Waukesha Motor Co.-
144A116*64A102H 426Chicago Pneumatic Tool, Hercules Motor Corp.IXB (Hercules)
154A1184A102H 428Hercules Motor Corp.ZXA, ZXB
164A120*64A102H 428Waukesha Motor Co.---
174A134*6-144A102H444Massey-Harris Co. Ltd.IXB (Hercules)
184A142*64A102H 452Hercules Motors Corp.IX, IXA, IXB
194A302*84A302H 4302Lincoln Electric Co.Fig. 2 (Continental)
204A3154A301H 4315--
214A3204A302H 4320Hardie Mfg. Co., Waukesha Motor Co.ICK
224A3234A301H4323International Harvester Co.TD-6, UD-6A, ID-6A, ID-9, TD-9, UD-9A, TD-14, UD-14A
234A3254A301H4325International Harvester Co.INT1-9, T-9, U-9
244A326*14A302H 4326Minneapolis Moline Co.RE combine engine
254A328*6-94A302H 4328Waukesha Motor Co.ICK
264A330*104A302H 4330Continental Motors Co.Y69, Y91, Y112, Y124, Y140, Y162
274A332*64A302H 4332Novo Engine Co.CW-95, CW-133
284A344A302H 4334Hercules Motors Corp."GO: overhead valve
294A336*104A302H 4336--
304A338*6-10-164A302H 4338Massey-Harris Co. Ltd.F162 (Continental)
314A340*11-124A302H 4340Massey-Harris Co. Ltd.F124, 101JR, F140, F162-3G (Continental)
324A348*6-134A302H 4348Waukesha Motor Co.ICK
334A3524A302H4352Leroi Co.9D, D176P
344A354*104A302H4354Ready Power Co."P" with Continental Y112
354A358*14A302H 4358Minneapolis-Moline Co.RE combine engine
364A3624A302H 4362--
374A3724A302H 4372VSchramm Inc.105 gas unipower
384A3824A302H 4382Kohler Co.KA4-196A, FC
394A3844A302H 4384KohlerKA4-196
404A3884A302H 4388International Harvester Co.U-2A, U-4, I-4, I-6, T-6, U-6
414A3904A302H 4390International Harvester Co.U-1
424A408*154A402H 4408--


Part Variations

Ill. #Part #Magneto Code
4HG 5253413, 16, 17, 18
4HG 5253314
4HG 5259415
4AHG 5253225,27,31,32
4AHG 5253526,28,29
4AHG 5261330
4AHG 5255138,39
4BHG 526041
7bSC 124-8CA42
8aCV 526391,24,35
8bCV 5263942
8dPL 5244142
9bSN 52141
22aRT 522941,21,25,27,32,38,39
22aRT 523062
22aRT 523445
22bRT 523476
24aBK 5236733
24cBK 523522,7,38,39
24cBK 523663,4,8,9
34BK 522143,4,8,9
34BK 5226933
43AIS 522122,3,4,7,8,9,38,39
43AIS 522792,3,4,7,8,9,38,39
43BBB 52112,3,4,7,8,9,38,39
43CSR 52592,3,4,7,8,9,28,39
44WA 12622,7
45GE 522491
46RT 523041
49GE 522511
55aDP 5272226
55dDP 526667
55eDP 526151
59bGA 522167
60bPL 524411,7
62bSC 15747
68SD 521941,13,14,16,17,18,25,27,30,31,32
71EC 10991
72CB 522181,13,14,16,17,18,25,30,32
72CB 5221127,31
74WA 15431,13,14,16,17,18,25,27,30,31,32
75IS 524781,13,14,16,17,18,25,27,30,31,32
76IS 524791,13,14,16,17,18,25,27,30,31,32
77WA 12781,13,14,16,17,18,25,27,30,31,32
78WA 726131,13,14,16,17,18,25,27,30,31,32
79WA 6-41,13,14,16,17,18,25,27,30,31,32
80NT 3-4CA1,13,14,16,17,18,25,27,30,31,32
81WA 21-41,13,14,16,17,18,25,27,30,31,32
82SP 523391
82EC 526813,14,16,17,18,25,27,30,31,32
83IS 524541
84SC 13801,13,14,16,17,18,25,27,30,31,32
95CB 5217817,30,31
**1FP 639147,8,9
**2FL 73587
**2FL 737415,18
**3FP 757797
**4ICH 2A22-22'1
**4ICB 2A19-20'10
**4ICB 2A19-25'11
**4ICB 2A20-20'12,13,17
**4ICB 2A20-25'13,14
**4ICB 2A2-20'15,18
**4ICB 2A2016
**4ICA 2A2-20'19,31
**4ICA 2A23-30'20
**4ICA 2A22-20'21,27,32,39
**4ICA 2A53-36'22
**4ICA 2A55-36'23
**4ICH 2A2-25'24
**4ICA 2A24-20'25
**4ICA 2A2-15'26,30
**4ICA 2A90-20'28
**4ICA 2A18-35'29,40
**4ICA 2A2-35'33
**4ICA 2A2-25'34
**4ICH 2A4-25'35
**4ICA 2A44-20'36
**4ICA 2A34-35'37
**4ICA 2A28-15'-38
**4ICA 2A80-14'41
**4ICA 2A40-15'42
For All Other Required Parts, Refer To The Applicable Basic Magneto


*1. Assemble ventilators to housing with opening towards drive end of magneto (90 degrees from standard).
*2. "E" Gap: 3.5 - 4.5 mm ---Point Opening: .009 - .011 ".
*3. Identified by customer's part # 52766CS stamped on magneto housing. *4. Identified by customer's # 52780 stamped on magneto housing.
*5. Identified by customer's # 60435 stamped on name plate.
*6. Grounding spring assembled on right hand side of magneto as viewed from drive end.
*7. ICB 2A20-- 25 deg. impluse coupling is applicable to Chicago Pneumatic and hercules magnetos. ICB 2A20-- 20 deg. is applicable to Waukesha magnetos.
*8. Identified by customer's part # L-3228 stamped on magneto housing.
*9. Gear # 121219A (not supplied by American Bosch) is assembled to this magneto.
*10. Magneto mounted in an inverted position. Impluse coupling arrester plate and ventilators in magneto housing to be assembled 180 deg. from standard position.
*11. Grounding spring mounted on left hand side of magneto housing as viewed from drive end.
*12. This magneto uses 4 high tension cables (95) (23 1/2" long, 29 1/2" long, 31" long and 37" long; for set order 4 and specify length).
*13. Gear # 121519A (not supplied by American Bosch) is assembled to this magneto.
*14. This magneto uses 4 high tension cables (95) (20" long, 22" long, and two 23" long; for set order 4 and specify length).
*15. Magneto mounted 90 deg. counter-clockwise from standard position. Impluse coupling arrester plate assembled 90 deg. clockwise from standard position.
*16. This magneto uses 4 high tension cables (95) (25 1/2" long, 31 1/2" long, 33" long and 39" long; for set order 4 and specify length).



SERVICE PARTS LIST

For 6 Cylinder Non-Basic Unshielded Magnetos

MAGNETO CODE


Part variations within the following group of magnetos are indicated by a code number, or combination of code numbers, in the "Magneto Code" column.
EXAMPLE: Illustration number 22a, part number RT 52294-- magneto rotor, is applicable to magnetos 13 and 16 only, namely MRD 6A314 and MRD 6A324.

Code #MRD MAGNETO #MRD BASIC MAGNETOInstallation #CUSTOMERUsed On Engine Model
16/2 360' A3076/2 360' A301H 3307ZSchramm Inc.150 gas Pneumapower-
26/2 360' A3086/2 360' A302H 3308ZHercules Motors Corp"GO" overhead valve
36/2 360' A310(1)6/2 360' A302H 3310ZSchramm Inc.105 gas pneumapower
46A101(2)6A101H 611Hercules Motors CorpJX, QXB-5
56A101(3)6A101H 611Hercules Motors Corp Lincolon Electric Co.YXC,YXC2,YXC3,WXC,WXC2,WXC3,RXB,RXC,QX,JX-
66A111(4)6A101H 621Chicago Pneumatic Co.-
76A1136A101H 623Hercules Motors CorpJXA,JXB,JXC,JXD
86A1156A101H 625Hercules Motors CorpWXCL-3PU
96A1196A101H 629Hercules Motors CorpJXA,JXB,JXC,JXD
106A302(5)6A302H 6302Continential Motors CorpF226
116A3076A301H 6307FSchramm Inc210 gas unipower
126A3106A302H 6310Oliver CorpTo oil burning KD Tractor; To gas burning HC Tractor
136A314(5)6A302H 6314Waukesha Motor Co.195GK
146A316(7)6A302H 6316Oliver Corp.70 HC Tractor
156A318(4)6A302H 6318Worthington Pump & Machinery Co.105 air compressor w/Continental F226 engine
166A3246A302H 6324Waukesha Motor Co.175GK
176A326(1)6A302H 6326Lincoln Electric Co.QXLD-3 (Hercules)
186A3346A302H 6334Hercules Motors Co."GO" overhead valve


Part Variations

Ill. #Part #Magneto Code
3bPK 523812
4HG 525336
4HG 525317,9
4AHG 525352,17,18
4AHG 5253215
22aRT 5229413,16
24cBK 523529
43AIS 522129
43AIS 522799
43BBB 52119
43CSR 52599
55aDP 527163
68SD 521946,15
72CB 522186
72CB 5221115
74WA 15436,15
75IS 524786,15
76IS 514796,15
77WA 12786,15
78WA 726136,15
79WA 6-46,15
80NT 3-4CA6,15
81WA 21-46,15
82EC 52686,15
84SC 13806,15
95CB 5217814
**4ICA 2A9-30'1
**4ICA 2A90-30'2,18
**4ICA 2A2-12'3
**4ICB 2A19-25'4,6
**4ICB 2A19-30'5,7,9
**4ICB 2A47-40'8
**4ICA 2A2-25'10
**4ICA 2A2-30'10,14,17
**4ICA 2A2-35'10,15
**4ICA 2A9-30'11
**4ICA 2A2-45'12
**4ICA 2A22-35'13
**4ICA 2A22-40'13
**4ICA 2A22-50'13
**4ICA 2A72-55'16
For All Other Required Parts Refer To The Applicable Basic Magneto

*1. Magneto is mounted in inverted position. Impluse coupling arrester plate and ventilators in magneto housing to be assembled 180' from standard position.
*2. Indentified by customer's part #52773CS stamped on magneto housing.
*3. Lincoln Electric magnetos manufactured prior to 2-11-1958 are identified by their part #L-2759 stamped on magneto housing. Lincoln Electric magnetos manufactured after 2-11-1958 and all Hercules magnetos are identified by part#52784 stamped on magneto housing.
*4. Grounding spring assembled to right hand side of magneto housing as viewed from drive end.
*5. ICA 2A2-25' impluse coupling used on magnetos identified by customer's part #F226M-268 stamped on magneto housing.
ICA 2A2-30' impluse coupling used on magnetos identified by customer's part#F226M-237 stamped on magneto housing.
ICA 2A2-35' impluse coupling used on magnetos identified by customer's #F226M-259 stamped on magneto housing.
*6. ICA 2A22-35' impluse coupling used on magnetos indentified by customer's part #60436 stamped on magneto housing.
ICA 2A22-40'impluse coupling used on magnetos indentified by customer's part #60436-B stamped on magneto housing.
ICA 2A22-50'impluse coupling used on magnetos indentified by customer's part #60436-A stamped on magneto housing.
*7. This magneto used 6 high tension cables (95) (1- 27 1/2" long, 1- 31" long, 1- 36 3/4" long, 1- 38 3/4" long, 1- 44 1/2 long, and 1- 46 1/2" long; for a set, order 6 and specify length).



END
