MRF Edition A NOMENCLATURE

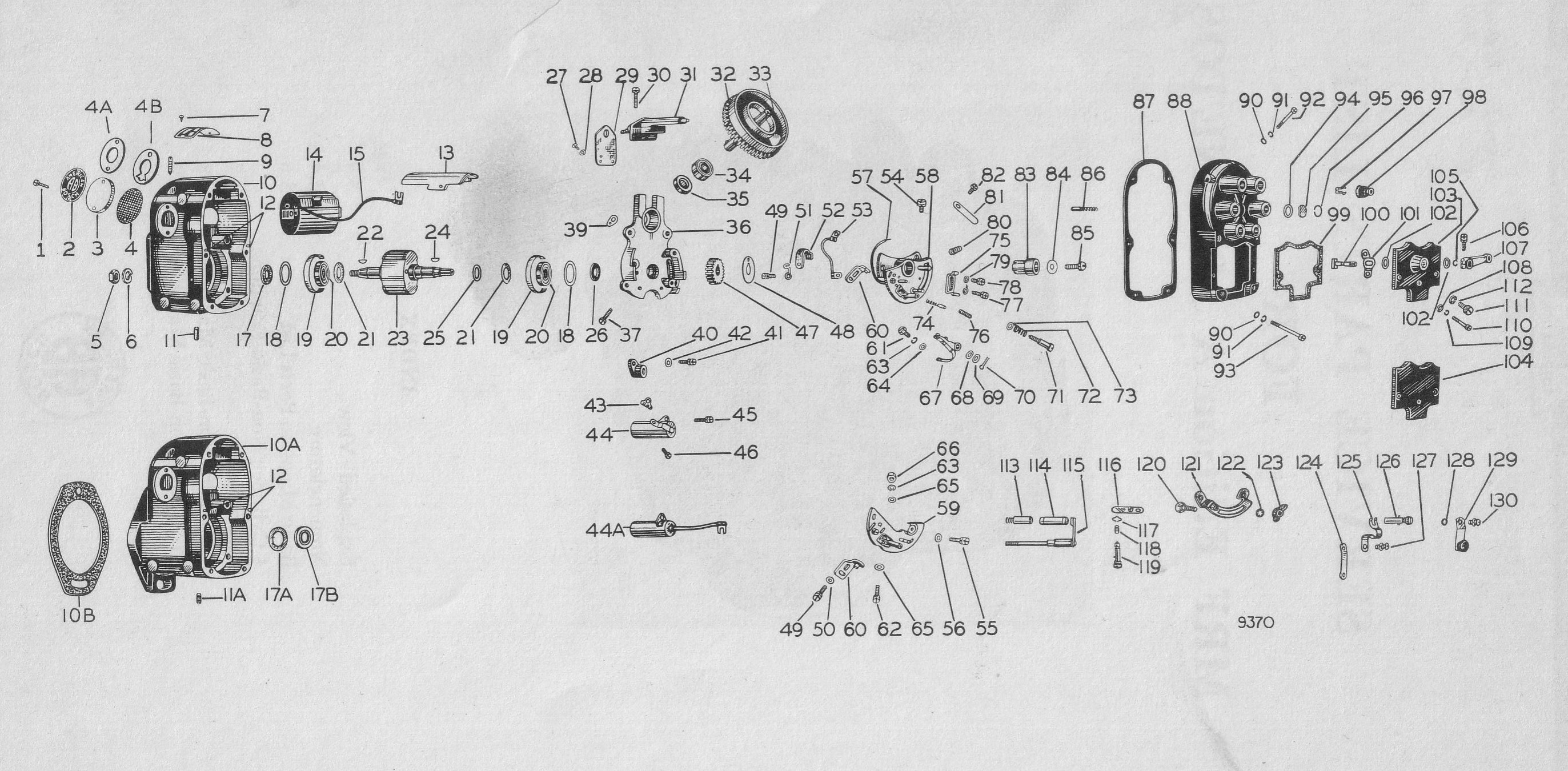

MRF Edition A Parts List For Basic Type Magnetos
| Illustration # | Part # | Description | Quanity Used | Remarks |
| 1 | SC 1707 | SCREW & LOCKWASHER, fastening ventilator | 4 | - |
| 2 | NP 5222 | PLATE, name- ventilator | 2 | - |
| 3 | CV 52126 | COVER, ventilator | 2 | - |
| 4 | SN 526 | SCREEN, Ventilator | 2 | - |
| 4A | - | WASHER, Ventilator | 2 | - |
| 4B | - | GASKET, Ventilator | 2 | - |
| 5 | NT 6-12 | NUT, magnet rotor shaft | 1 | For magnetos without couplings |
| 6 | WA 5-12 | WASHER, lock | 1 | For magnetos without couplings |
| 7 | SC 1812 | SCREW, fastening- nameplate | 2 | - |
| 8 | NP 5292 | PLATE, Name | 2 | - |
| 9 | SC 1334 | SCREW, set- coil | 2 | - |
| 10 | HG 52633 | HOUSING, magneto- includes illustrated part 12 | 1 | For base mounted magnetos |
| 10A | HG 52634 | HOUSING, magneto- includes illustrated part 12 | 1 | For flange mounted magnetos |
| 10B | GA 52155 | GASKET, flange | 1 | - |
| 11 | FP 61561 | PLUG, felt | 2 | For base mounted magnetos |
| 11A | SC 1040 | SCREW, set | 2 | For flange mounted magnetos |
| 12 | PN 1001 | PIN, locating- distributor plate | 2 | - |
| 13 | IS 52488 | INSULATION, high-tension conductor | 1 | - |
| 14a | CL 524 | COIL, includes illustrated part 15 | 1 | For timing range magnetos |
| 14b | CL 52107 | COIL, includes illustrated parts 15b and 16 | 1 | For fixed spark magnetos |
| 15a | CB 52195 | CABLE, coil | 1 | For timing range magnetos |
| 15b | CB 52194 | Cable, coil | 1 | For fixed spark magnetos |
| 17 | WA 1010 | WASHER, felt- magnet rotor shaft (drive end) | 1 | For base mounted magnetos |
| 17A | WA 1071 | WASHER, oil seal | 1 | For flange mounted magnetos |
| 17B | PK 521 | SEAL, oil | 1 | For flange mounted magnetos |
| 18 | IS 222 | WASHER, insulation- ball bearing | 2 | - |
| 19a | IS 52265 | STRIP, insulation- ball bearing | two of a or b | .009" thick |
| 19b | IS 52266 | STRIP, insulation- ball bearing | teo of a or b | .008" thick |
| 20 | BB 60226 | BEARING, ball | 2 | - |
| 21 | WA 1204 | WASHER, grease retaining- ball bearing | 2 | - |
| 22 | KY 11-4 | KEY, woodruff- magnet rotor shaft (drive end) | 1 | - |
| 23 | RT 52195 | ROTOR, magnet | 1 | - |
| 24 | KY 11-3 | KEY, woodruff- magnet rotor shaft (breaker end) | 1 | - |
| 25a | WA 61 | WASHER, spacing- magnet rotor shaft | as req'd | .012" thick |
| 25b | WA 106 | WASHER, spacing- magnet rotor shaft | as req'd | .007" thick |
| 25c | WA 107 | WASHER, spacing- magnet rotor shaft | as req'd | .004" thick |
| 25d | WA 1009 | WASHER, spacing- magnet rotor shaft | as req'd | .002" thick |
| 26 | WA 81751 | WASHER, felt- magnet rotor shaft (breaker end) | 1 | - |
| 27 | SC 122-8CA | SCREW, fastening- insulation | 2 | - |
| 28 | WA 1702 | WASHER, plain- fastening screw | 2 | - |
| 29 | IS 52531 | INSULATION, bracket- distributor gear | 2 | - |
| 30 | SC 1167 | SCREW & LOCKWASHER, fastening- hig tension conductor | 2 | - |
| 31 | EC 5212 | CONDUCTOR, high-tension | 1 | - |
| 32 | - | GEAR & ROTOR ASSEMBLY, distributor | 1 | - |
| 33 | - | ROTOR, distributor | 1 | - |
| 34 | BB 1019(1) | BEARING, ball- distributor gear bracket | 1 | - |
| 35 | BG 52185(1) | BEARING, spacer | 1 | - |
| 36 | BK 52377(1) | BRACKET, distributor gear- includes illustrated parts 34 & 35 | 1 | - |
| 37 | SC 1606 | SCREW & LOCKWASHER, fastening- distributor gear bracket | 4 | - |
| 39 | EC 1002 | CLIP, holding- coil cable | 1 | - |
| 40 | BL 522 | BLOCK, terminal | 1 | For timing range magnetos |
| 41 | SC 1169 | SCREW & LOCKWASHER, fastening- terminal block | 1 | For timing range magnetos |
| 42 | WA 72613 | WASHER, plain- fastening screw | 1 | For timing range magnetos |
| 43 | EC 5214 | TERMINAL, coil and breaker plate cable | 1 | For timing range magnetos |
| 44 | CW 5210 | CONDENSER, complete | 1 | For timing range magnetos |
| 44A | CW 5291 | CONDENSER, complete | 1 | For fixed spark magnetos |
| 45 | SC 1143 | SCREW & LOCKWASHER, fasteninmg- condenser | 1 | - |
| 46 | SC 1168 | SCREW & LOCKWASHER, fastening- condenser lead and terminal (43) to terminal block (40) | 1 | For timing range magnetos |
| 47 | - | GEAR, drive | 1 | - |
| 48 | WA 522 | WASHER, indicating | 1 | - |
| 49a | SC 1229 | SCREW & LOCKWASHER, fastening- adjustable contact bracket | 1 | For timing range magnetos |
| 49b | SC 1740 | SCREW & LOCKWASHER, fastening- adjustable contact bracket | 1 | For fixed spark magnetos |
| 50 | WA 72613 | WASHER, plain- fastening screw | 1 | For fixed spark magnetos |
| 51 | HP 5220 | HOOK, cam wick | 1 | - |
| 52 | WK 5234 | WICK, cam | 1 | - |
| 53 | CB 5227 | CABLE, grounding | 1 | For timing range magnetos |
| 54 | SC 1736 | SCREW & LOCKWASHER, fastening- breaker support plate | 2 | For timing range magnetos |
| 55 | SC 1307 | SCREW & LOCKWASHER, fastening- breaker plate | 2 | For fixed spark magnetos |
| 56 | WA 72613 | WASHER, plain fastening screw | 2 | For fixed spark magnetos |
| 57 | CB 52225 | CABLE, connecting- coil and condenser to breaker | 1 | For timing range magnetos |
| 58a | BK 52334 | BREAKER PLATE ASSEMBLY, includes illustrated parts 49a, 51-54, 57, 60, 61, 64, 67-70, 74, 76 and 80 | 1 | For timing range magnetos |
| 58b | - | BREAKER PLATE ASSEMBLY, includes illustrated parts 49a, 51-54, 57, 60, 61, 63,64, 67-74, 81 and 82 | 1 | For fixed spark magnetos |
| 58c | PL 52514 | PLATE, breaker- includes illustrated parts 51, 52, 57 and rivited parts | 1 | For timing range magnetos |
| 59a- | BK 52333 | BREAKER PLATE ASSEMBLY, includes illustrated parts 49b-52, 60, 62, 63,65-70, and 74 | 1 | For fixed spark magnetos |
| 59b | - | BREAKER PLATE ASSEMBLY, includes illustrated parts 49b-52, 60, 62, 63,65-70 | 1 | For timing range magnetos |
| 59c | BK 52347 | PLATE, breaker- includes rivited and illustrated parts 51 and 52 | 1 | For fixed spark magnetos |
| 60 | BK 525 | BRACKET, adjustable contact point | 1 | - |
| 61 | SC 1004 | SCREW, fastening- breaker lever spring | 1 | For timing range magnetos |
| 62 | SC 1563 | SCREW & LOCKWASHER, fastening-- | 1 | For fixed spark magnetos |
| 63 | WA 5-4 | WASHER, plain- fastening screw | 1 | - |
| 64 | WA 1037 | WASHER, plain- fastening screw | 1 | For timing range magnetos |
| 65 | WA 1037 | WASHER, plain- fastening screw | 2 | For fixed spark magnetos |
| 66 | NT 1041 | NUT, fastening | 1 | For fixed spark magnetos |
| 67 | LE 522 | LEVER, breaker | 1 | - |
| 68 | WA 86678 | WASHER, plain- breaker lever stud | 1 | - |
| 69 | WA 1625 | WASHER, spacing | as req'd | - |
| 70 | FP 84791 | PIN, cotter | 1 | - |
| 71 | - | STUD, holding- stop plate | 1 | - |
| 72 | - | SPRING, holding stud | 1 | - |
| 73 | - | WASHER, plain- holding stud | 1 | - |
| 74 | BR 521 | BRUSH, grounding | 1 | - |
| 75a | PL 526 | PLATE, stop (clockwise rotation) | 1 | For 20' timing range |
| 75b | PL 529 | PLATE, stop (counter-clockwise rotation) | 1 | For 20' timing range |
| 75c | PL 525 | PLATE, stop (either rotation) | 1 | For 30' timing range |
| 76 | SP 5213 | SPRING, coil- small- breaker plate stud | 1 | For timing range magnetos |
| 77 | SC 1169 | SCREW & LOCKWASHER, fastening-long-stop plate | 1 | For timing range magnetos |
| 78 | SC 1143 | SCREW & LOCKWASHER, fastening-short-stop plate | 1 | For timing range magnetos |
| 79 | WA 72613 | WASHER, plain- fastening screw | 2 | For timing range magnetos |
| 80 | SP 5214 | SPRING, coil- large- breaker plate stud | 1 | For timing range magnetos |
| 81 | - | PLATE, grounding | 1 | - |
| 82 | - | SCREW & LOCKWASHER, fastening-- | 1 | - |
| 83a | - | CAM | 1 | For timing range magnetos |
| 83b | - | CAM | 1 | For fixed spark magnetos |
| 84 | WA 5241 | WASHER, plain- cam | 1 | - |
| 85 | SC 1165 | SCREW & LOCKWASHER, fastening- cam | 1 | - |
| 86a | BR 5228 | BRUSH WITH SPRING, distributor plate | as req'd | SEE NOTE (1) |
| 86b | BR 5228 | BRUSH WITH SPRING, distributor plate, center | 1 | - |
| 87 | GA 523 | GASKET, distributor plate | 1 | - |
| 88a | - | PLATE, distributor- includes parts 94-96 | 1 | - |
| 88b | - | PLATE, distributor- includes parts 94-96, one of 98, and 113-115 | 1 | - |
| 90 | WA 98922 | WASHER, plain- distributor plate fastening screw | 6 | - |
| 91 | WA 288 | WASHER, lock- distributor plate fastening screw | 6 | - |
| 92 | SC 1002 | SCREW, fastening- short- distributor plate | 2 | - |
| 93 | SC 1003 | SCREW, fastening- long- distributor plate | 4 | - |
| 94 | GA 1003 | GASKET, observation window | 1 | - |
| 95 | WN 521 | WINDOW, observation | 1 | - |
| 96 | SP 1001 | RING, spring- observation window | 1 | - |
| 97 | FP 81953 | TERMINAL, cable- high-tension | 1 per cyl | - |
| 98 | IS 82927 | NIPPLE, cable- high-tension | 1 pe cyl | - |
| 99 | GA 521 | GASKET, end cap | 1 | - |
| 100 | SH 529 | SHAFT, timing arm | 1 | For timing range magnetos |
| 101 | LE 526 | LEVER, timing | 1 | For timing range magnetos |
| 102 | WA 1003CA | WASHER, plain- timing and shaft | 2 | For timing range magnetos |
| 103a | CP 5210 | END CAP ASSEMBLY, includes illustrated parts 99-102, and 105-112 | 1 | For timing range magnetos |
| 103b | - | END CAP ASSEMBLY, includes illustrated parts 99-102, 105-107, 111, 112, and 120-123 | 1 | For timing range magnetos |
| 103c | - | END CAP ASSEMBLY, includes illustrated parts 99, and 125-127 | 1 | For timing range magnetos |
| 103d | CP 5215 | CAP, end- includes illustrated part 99 | 1 | For timing range magnetos |
| 104a | CP 525 | END CAP ASSEMBLY, includes illustrated parts 99, 111 and 112 | 1 | For fixed spark magnetos |
| 105 | SP 1002CA | RING, spring- timing arm shaft | 1 | For timing range magnetos |
| 106 | SC 1162 | SCREW & LOCKWASHER, fastening- timing arm | 1 | For timing range magnetos |
| 107 | LE 521 | ARM, timing | 1 | For timing range magnetos |
| 108 | WA 98922 | WASHER, plain- end cap fastening screw | 2 | - |
| 109 | WA 288 | WASHER, lock- end cap fastening screw | 2 | - |
| 110 | SC 1001 | SCREW, fastening- end cap | 2 | - |
| 111 | SC 1006CA | SCREW, grounding | 1 | - |
| 112 | WA 45279 | WASHER, lock-grounding screw | 1 | - |
| 113 | - | TERMINAL, ceramic | 1 | - |
| 114 | - | RESISTOR | 1 | - |
| 115 | - | STUD, grounding | 1 | - |
| 116 | - | PLATE, contact- grounding | 1 | - |
| 117 | - | RING, spring- grounding switch | 1 | - |
| 118 | - | SPRING, grounding switch | 1 | - |
| 119 | - | SWITCH ASSEMBLY, grounding | 1 | - |
| 120 | - | STUD, holding- timing arm | 1 | For timing range magnetos |
| 121 | - | PLATE, quadrant | 1 | For timing range magnetos |
| 122 | - | WASHER, lock- holding stud | 1 | For timing range magnetos |
| 123 | - | NUT, wing- holding stud | 1 | For timing range magnetos |
| 124 | - | SPRING, grounding | 1 | - |
| 125 | - | SPRING, holding- grounding contact switch | 1 | - |
| 126 | - | CONTACT SWITCH ASSEMBLY | 1 | - |
| 127 | - | SCREW & LOCKWASHER, fastening- holding spring | 1 | - |
| 128 | - | WASHER, lock- grounding spring | 1 | - |
| 129 | - | SPRING- grounding (includes knob) | 1 | - |
| 130 | - | SCREW & LOCKWASHER, fastening- grounding spring | 1 | - |
| **1 | - | DISC, drive | 1 | - |
| **2 | - | IMPLUSE COUPLING ASSEMBLY- for parts and illustrations, see Coupling Section | 1 | - |
**Not Illustrated
1. MRF 4A, 6A 4/1A and 4/2 180'A Magnetos require brushes in all distributor plate brush holders."E" Gap: 1-2 mm Point Opening: .014-.018"
Magneto type designations ending in odd numbers denote CCLW rotation as viewed from the drive end. Magneto type designations ending in even numbers denote CLW rotation as viewed from the drive end.
Basic magnetos having type designations in the 100 (Example: MRF 4A101)are supplied with ICB2A1 or 2 impulse couplings depending on rotation.
Basic magnetos having type designations in the 300 (Example: MRF 6A303)are supplied with ICA2A1 or 2 impulse couplings, depending on rotation.
Basic magnetos having type designations ending in one or two digit numbers (Examples: MRF4A5, MRF6A32) are not supplied with impulse couplings.
The part, or parts, affected by this reissue is indicated by a X at the left of the illustration number.
| Ill. # | MRF 4A MRF 4/1A | MRF 4/2A MRF 4/2 180'A MRF 4/2 360'A | MRF 6A | MRF 6/2A MRF 6/2A 360'A |
|---|---|---|---|---|
| 32 | GE 52404 | GE 52402 | GE 52406 | GE 52403 |
| 32 (180') | - | GE 52404 | - | - |
| 32 (360') | - | GE 52404 | - | GE 52400 |
| 33 | RT 52425 | RT 52428 | RT 52426 | RT 52423 |
| 33 (180') | - | RT 52425 | - | - |
| 33 (360') | - | RT 52425 | - | - |
| 47 | GE 5212 | GE 5212 | GE 5211 | GE 5211 |
| 83a | CA 522 | CA 522 | CA 522 | CA 522 |
| 83a (360') | - | CA 524 | - | CA 524 |
| 83b | CA 52102 | CA 52102 | CA 52102 | CA 52102 |
| 83b (360') | - | CA 52105 | - | CA 52105 |
| 88a | DP 5240(2) | DP 5240(2) | DP 5239 | DP 5239(3) |
ALL OTHER ILLUSTRATED PARTS USED ON VARIATIONS OF THESE MAGNETOS.
For MRF 4/2A, fill top two towers with sealing wax.
For MRF 4/2 180'A, ground bottom two towers.
For MRF 4/2 360'A, ground towers # 2 and 4.
3. For MRF 6/2A, fill towers # 1, 3, and 5 with sealing wax.
For MRF 6/2 360'A, ground towers # 1, 3, and 5.
Part variations within the following group of magnetos are indicated by a code number, or a combination of code numbers, in the "Magneto Code" column.
Example: Illustration number 83, part number CA 52105--- cam, is applicable to magneto 5 only, namely MRF 4/1A308.
| Code # | MRF Mag Var | MRF Basic Mag | Installation # | Customer Name | Used on Engine Model |
|---|---|---|---|---|---|
| 1 | 4/1 A110 | 4/1 A104 | F120 | Ingersoll-Rand Co. | ZXVG |
| 2 | 4/1 A111 | 4/1 A105 | F121 | Clark Bros. Co. | HS 1-2, HS 17 single L. H., HQ 1-2 |
| 3 | 4/1 A118 | 4/1 A104 | F128 | Ingersoll-Rand Cp. | XVG |
| 4 | 4/1 A120 | 4/1 A102 | F130 | Ingersoll-Rand Co. | XVG |
| 5 | 4/1 A308(1) | 4/1 A302 | F1308 | Ajax Iron Works | CM |
| 6 | 4/2 180' A114 | 4/2 180' A104 | F224Y | Ingersoll-Rand Co. | SVG, JVG, PVG, XVG |
| 7 | 4/2 180' A116 | 4/2 180' A102 | F226Y | Ingersoll-Rand Co. | SVG, JVG, PVG, XVG |
| 8 | 4/2 360' A107 | 4/2 360' A103 | F217Z | Ingersoll-Rand Co. | - |
| 9 | 4/2 360' A109 | 4/2 360' A102 | F219Z | Ingersoll-Rand | - |
| 10 | 4/2 360' A118 | 4/2 360' A106 | F2228Z | Cooper Bessemer Corp. | GA-W, GD-S, GM-A, GM-B, GA-U, GD-T, GD-Q |
| 11 | 4/3 A114(2) | 4A104 | F324 | Ingersoll-Rand Co. | XVG, PVG |
| 12 | 4/3 A116(2) | 4A102 | F326M | Ingersoll-Rand Co. | XVG, PVG |
| Ill. # | Part # | Mag Code |
|---|---|---|
| 83 | CA 52105 | 5 |
| 88a | DP 52678 | 5 |
| 103b | CP 5241 | 1, 3, 6, 11 |
| - | CP 5224 | 2, 10 |
| - | CP 5243 | 8 |
| 113 | EC 5711 | 5 |
| 114 | RE 523 | 5 |
| 115 | SD 52210 | 5 |
| 120 | SD 5230 | 1, 2, 3, 6, 8, 10, 11 |
| 121 | PL 52136 | 1, 3, 6, 11 |
| - | PL 5268 | 2, 10 |
| - | PL 52147 | 8 |
| 122 | WA 22-5 | 1, 2, 3, 6, 8, 10, 11 |
| 123 | NT 1026 | 1, 2, 3, 6, 8, 10, 11 |
| **2 | ICM 2A20-27' | 1, 3, 4, 6, 7, 11, 12 |
| - | ICM 2A19-37' | 2 |
| - | ICA 2A2-40' | 5 |
| - | ICM 2A19-27' | 8, 9 |
| - | ICM 2A12-37' | 10 |
1. Assemble brushes (86a) into distributor plate towers #1 and 3 only.
2. Ground distributor plate tower # 3.
Part variations within the following group of magnetos are indicated by a code number, or a combination of code numbers, in the "Magneto Code" column.
Example: Illustration number 88a, part number DP 52654 --- distributor plate, is applicable to magneto 2 only, namely MRF 4A102J.
| Code # | MRF Mag Var | MRF Basic Mag | Installation # | Customer Name | Used on Engine Model |
|---|---|---|---|---|---|
| 1 | 4A102(1) | 4A102 | F412 | Waukesha Motor Co. | VX |
| 2 | 4A102J | 4A102 | F412J | - | - |
| 3 | 4A106(2) | 4A106 | F416 | Waukesha Motor Co. | FC Starting Engine for LRD Diesel Engine |
| 4 | 4A114 | 4A102 | F424 | Ingersoll-Rand Co., Waukesha Motor Co. | VRZN |
| 5 | 4A119 | 4A101 | F429 | Caterpillar Tractor Co. | E43 |
| 6 | 4A122 | 4A106 | F432 | Ingersoll-Rand Co. | - |
| 7 | 4A136 | 4A102 | F446 | Caterpillar Tractor Co. | - |
| 8 | 4A138 | 4A102 | F448 | Caterpillar Tractor Co. | E6, 10, 12, 13, 16, 19, 20, 26, 27, 30, 36, 38, 39, 67, 68 |
| 9 | 4A140 | 4A106 | F450 | Caterpillar Tractor Co. | T29, 37, 38, 39, 43, 45 |
| 10 | 4A144 | 4A104 | F454 | Ingersoll-Rand Co. | SVG,JVG,XVG,PVG,KVG,PKVG |
| 11 | 4A148 | 4A102 | F458 | Ingersoll-Rand Co. | SVG,JVG,XVG,PVG,KVG,PKVG |
| 12 | 4A344 | 4A302 | F4334 | Hercules Motors Corp. | - |
| Ill. # | Part # | Mag Code |
|---|---|---|
| 10A | HG 52664 | 12 |
| 32 | GE 52371 | 2 |
| 33 | RT 52436 | 2 |
| 58b | BK 52344 | 6 |
| 58c | PL 52518 | 6 |
| 59b | BK 52346 | 4 |
| 60 | BK 5253 | 4 |
| 67 | LE 5235 | 4 |
| 71 | SD 1001 | 6 |
| 72 | SP 525 | 6 |
| 73 | WA 98904 | 6 |
| 75 | PL 528 | 6 |
| 81 | PL 5246 | 6 |
| 82 | SC 1427 | 6 |
| 88a | DP 52654 | 2 |
| 103a | CP 5299 | 9 |
| 103b | CP 5241 | 10 |
| 103c | CP 5213 | 6 |
| 103d | CP 5231 | 6 |
| 107 | LE 5245 | 9 |
| 120 | SD 5230 | 10 |
| 121 | PL 52136 | 1 |
| 122 | WA 22-5 | 10 |
| 123 | NT 1026 | 10 |
| 125 | SP 5218 | 6 |
| 126 | CT 5210 | 6 |
| 127 | SC 1154 | 6 |
| **2 | ICB 2A20-20' | 1 |
| **2 | ICB 2A2-40' | 2 |
| **2 | ICB 2A20-40' | 3 |
| **2 | ICB 2A2D-21' | 4 |
| **2 | ICB 2A1-35' | 5 |
| **2 | ICB 2A20-30' | 6 |
| **2 | ICB 2A2-35' | 7, 8, 9 |
| **2 | ICM 2A20-27' | 10, 11 |
| **2 | ICA 2A90-20' | 12 |
1. Customer's part # 50262 stamped on nameplate.
2. Customer's part # 60435 stamped on nameplate.
** Not illustrated.
Part variations within the following group of magnetos are indicated by a code number,or a combination of code numbers, in the "Magneto Code" column.
EXAMPLE: Illustration number 103b, part number CP 5241--- end cap assembly, is applicable to magnetos 1 and 15 only, namely MRF 6/2 360'A116 and MRF 6A132.
| Code # | MRF Mag Var | MRF Basic Mag | Installation # | Customer Name | Used on Engine Model |
|---|---|---|---|---|---|
| 1 | 6/2 360' A116 | 6/2 360' A104 | F326Z | Ingersoll Rand Co. | SVG,JVG,KVG,PKVG |
| 2 | 6/2 360' A118 | 6/2 360' A102 | F328Z | Ingersoll Rand Co. | SVG,JVG,KVG,PKVG |
| 3 | 6/2 360' A308 | 6/2 360' A302 | F3308Z | Schramm Inc. | STARR |
| 4 | 6A101(1) | 6A101 | F611 | Hercules Motors Corp. | JXA,JXB.JXC,JXD |
| 5 | 6A102(2) | 6A102 | F612 | Waukesha Motor Co. | WAK,WAKB,NKR |
| 6 | 6A102J | 6A102 | F612J | - | - |
| 7 | 6A108 | 6A106 | F618 | Chicago Pneumatic Tool Co. | HXE (Hercules) |
| 8 | 6A110 | 6A106 | F620 | Worthington Corp. | BBGG |
| 9 | 6A112 | 6A102 | F622 | Waukesha Motor Co. | 6 WAK |
| 10 | 6A113 | 6A101 | F623 | National Supply Co. | G-510, PTG |
| 11 | 6A114 | 6A102 | F624 | Waukesha Motor Co. | 6WAKH, 6NKH, 6LRH (Hessleman) |
| 12 | 6A116J | 6A102 | F626 | Waukesha Motor Co. | WAKB |
| 13 | 6A126 | 6A102 | F636 | Caterpillar Tractor Co. | E43 |
| 14 | 6A130 | 6A102 | F640 | Maxim Motor Co. | - |
| 15 | 6A132 | 6A104 | F642 | Ingersoll Rand Co. | KVG,PKVG |
| 16 | 6A138 | 6A102 | F648 | Caterpillar Tractor Co. | D-1300 |
| 17 | 6A140 | 6A102 | F650 | Ingersoll Rand Co. | KVG,PKVG |
| 18 | 6A301(3) | 6A301 | F6301 | Waukesha Motor Co. | 145GK |
| 19 | 6A302J | 6A302 | F6302J | - | - |
| 20 | 6A308(4) | 6A302 | F6308 | Schramm Inc. | Experimental Engine |
| 21 | 6A310 | 6A302 | F6310 | J. I. Case Co. | 610 |
| 22 | 6A311 | 6A301 | F6311 | Minneapolis Moline Co. | 605-6; 1210-12A |
| 23 | 6A312(4) | 6A306 | F6312 | Leroi Division Westinghouse Air Brake Co. | L3000 |
| 24 | 6A313J | 6A301 | F6313 | Waukesha Motor Co. | 145-GKB |
| 25 | 6A314 | 6A302 | F6314 | Minneapolis Moline Co. | HUA, HEB |
| 26 | 6A318(5,6) | 6A302 | F6318 | Continental Motors Corp. | R6602, R-602 |
| 27 | 6A320 | 6A302 | F6320 | Continental Motors Corp. | R-602 |
| 28 | 6A322 | 6A302 | F6322 | Continental Motors Corp. | F226 |
| 29 | 6A323(4) | 6A301 | b6323 | Chrysler Corp. | 31, 33 |
| 30 | 6A325 | 6A305 | b6325 | Waukesha Motor Co., The Four Wheel Drive Auto Co. | 145GKB Fire Engine |
| 31 | 6A327 | 6A301 | F6327 | Leroi Division Westinghouse Air Brake Co. | L3260, L4000, F1500 |
| 32 | 6A328 | 6A302 | F6328 | Leroi Division Westinghouse Air Brake Co. | L3460 |
| 33 | 6A331 | 6A301 | F6331 | International Harvester Co. | U-308, UR-372, UR-450, UR-501 |
| 34 | 6A334 | 6A302 | F6334 | Hercules Motors Corp. | G0 |
| Ill. # | Part # | Mag Code |
|---|---|---|
| 4A | WA 5281 | 23 |
| 4B | GA 5215 | 23 |
| 10A | HG 52664 | 34 |
| 32 | GE 52372 | 6, 12, 19, 24 |
| 33 | RT 52436 | 6, 12, 19, 24 |
| 44A | CW 5297 | 9 |
| 58b | BK 52344 | 7 |
| 58c | PL 52518 | 7 |
| 59a | BK 52341 | 11 |
| - | BK 52339 | 14, 28, 33 |
| 60 | BK 5253 | 11 |
| - | BK 5236 | 14, 28, 33 |
| 67 | LE 5235 | 11 |
| - | LE 5220 | 14, 28, 33 |
| 71 | SD 1001 | 7 |
| 72 | SP 525 | 7 |
| 73 | WA 98904 | 7 |
| 75 | PL 528 | 7 |
| - | PL 5211 | 8 |
| 81 | PL 5246 | 7 |
| 82 | SC 1427 | 7 |
| 88a | DP 52699 | 3 |
| - | DP 52659 | 6, 12, 19, 24 |
| 103a | CP 5267 | 23 |
| 103b | CP 5241 | 1,15 |
| 103c | CP 5213 | 7 |
| 103d | CP 5231 | 7 |
| 107 | LE 5279 | 23 |
| 120 | SD 5230 | 1,15 |
| 121 | PL 52136 | 1,15 |
| 122 | WA 22-5 | 1,15 |
| 123 | NT 1026 | 1,15 |
| 125 | SP 5218 | 7 |
| 126 | CT 5210 | 7 |
| 127 | SC 1154 | 7 |
| **1 | DC 739 | 5,11,12 |
| **2 | ICM 2A20-31' | 1,2 |
| - | ICA 2A2-30' | 3,20,28,33 |
| - | ICB 2A19-30' | 4 |
| - | ICB 2A2-45' | 5 |
| - | ICB 2A2-40' | 6 |
| - | ICB 2A20-24' | 7 |
| - | ICB 2A76-35' | 8 |
| - | ICB 2A20-31' | 9 |
| - | ICB 2A69-50' | 10 |
| - | ICB 2A2-31' | 11 |
| - | ICB 2A52-50' | 12 |
| - | ICB 2A52-51' | 13 |
| - | ICB 2A20-40' | 14 |
| - | ICM 2A20-27' | 15, 17 |
| **2 | ICA 2A52-51' | 16 |
| - | ICA 2A1-40' | 18 |
| - | ICA 2A2-40' | 19 |
| - | ICA 2A18-30' | 21 |
| - | ICA 2A25-52' | 22 |
| - | ICA 2A52-50' | 23, 32 |
| **2 | ICA 2A1-45' | 24, 30 |
| - | ICA 2A26-52' | 25 |
| - | ICA 2A70 | 26 |
| - | ICA 2A6-30' | 27 |
| - | ICA 2A1-20' | 29 |
| - | ICA 2A51-50' | 31 |
| - | ICA 2A90-30' | 34 |
** Not Illustrated.
1. Customer's part # 50366-CS stamped on magneto nameplate.
2. Customer's part # 50362 stamped on magneto nameplate.
3. Customer's part # 60578 stamped on magneto nameplate.
4. Magneto is mounted in the inverted position. Ventilator covers and impluse coupling arrester plate to be assembled 180' from the standard position.
5. Assemble drive gear (not supplied by American Bosch) to coupling housing with timing marks on the gear (2 prick punch dots) between lug and timing mark on coupling housing.
6a. Magneto identified by customer's part # U-501M-414 requires a coupling automatic retard of 50' and drive gear U-501-H-305.
6b. Magneto identified by customer's part # R-602M-248 requires a coupling automatic retard of 70' and drive gear R-60H-300.
6c. Magneto identified by customer's part # R-602M-400 requires a coupling automatic retard of 50' and drive gear R-602H-300.
6d. Magneto identified by customer's part # T-427M-509 requires a coupling automatic retard of 50' and drive gear T-415H-301.
END
